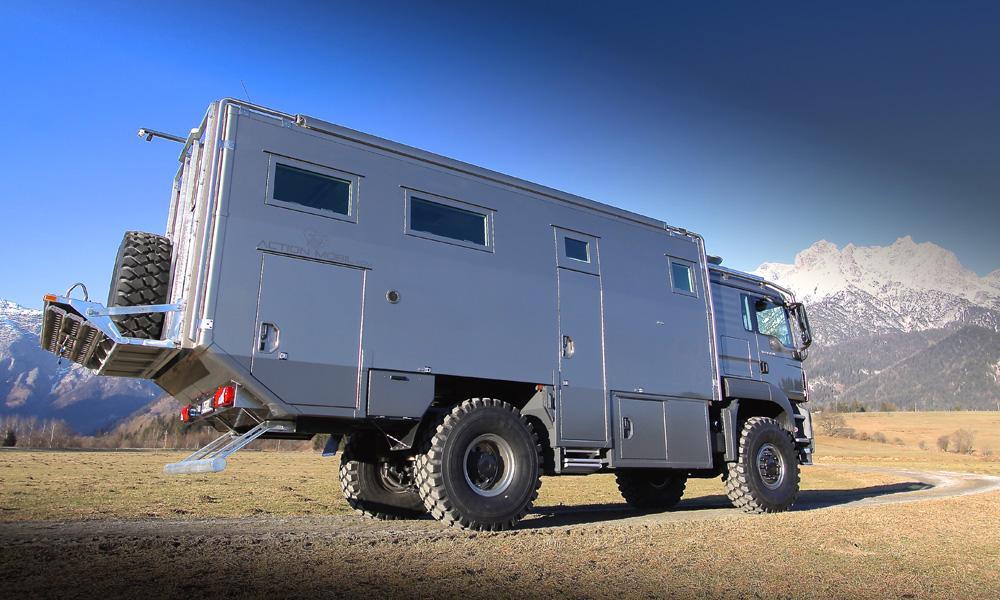

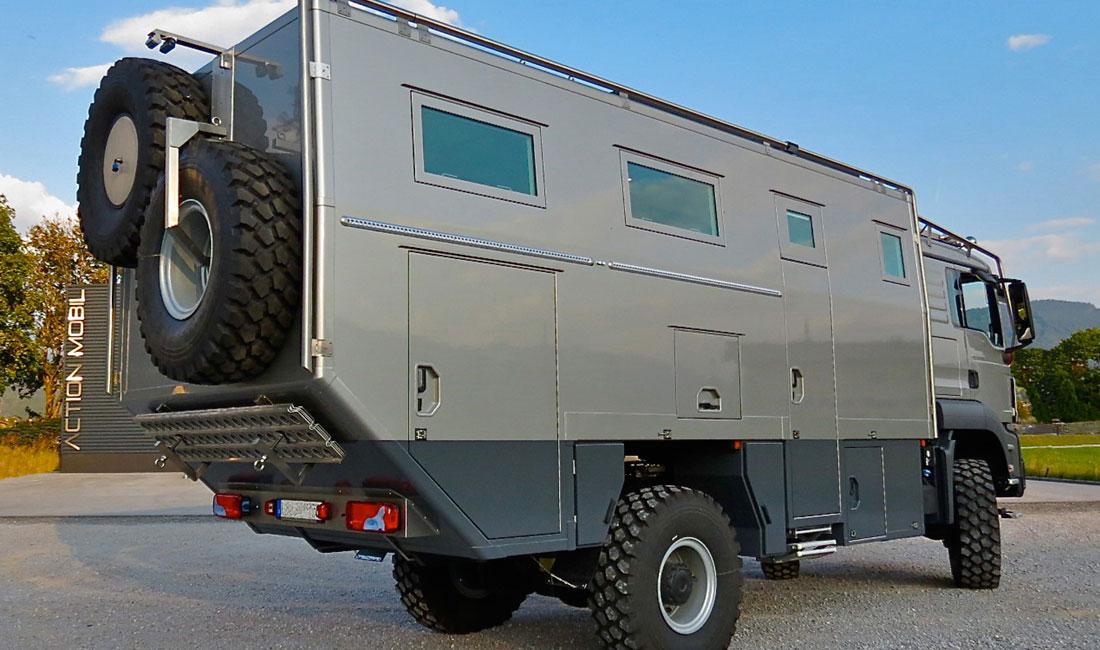

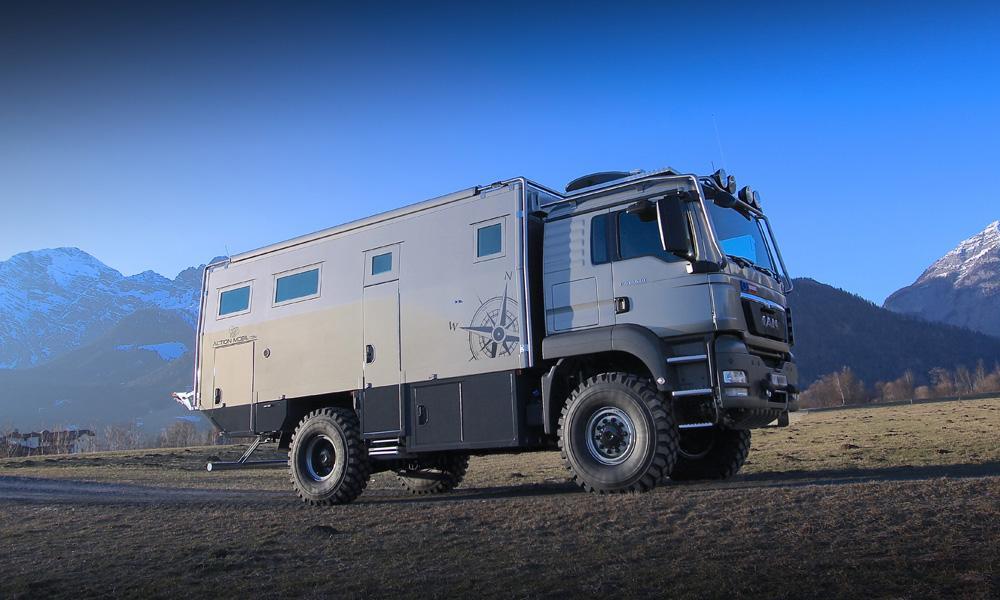

The most important features of the Atacama 6300: All-terrain, functional, powerful and creative. This new off-road motorhome belongs to the most popular Actionmobil series Atacama.

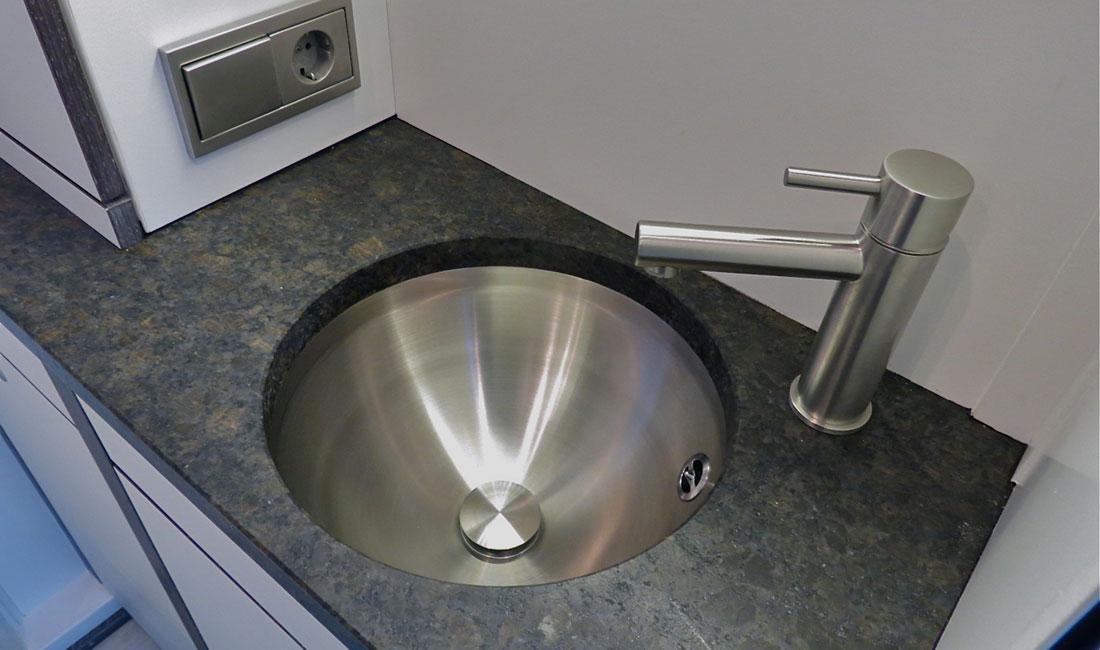

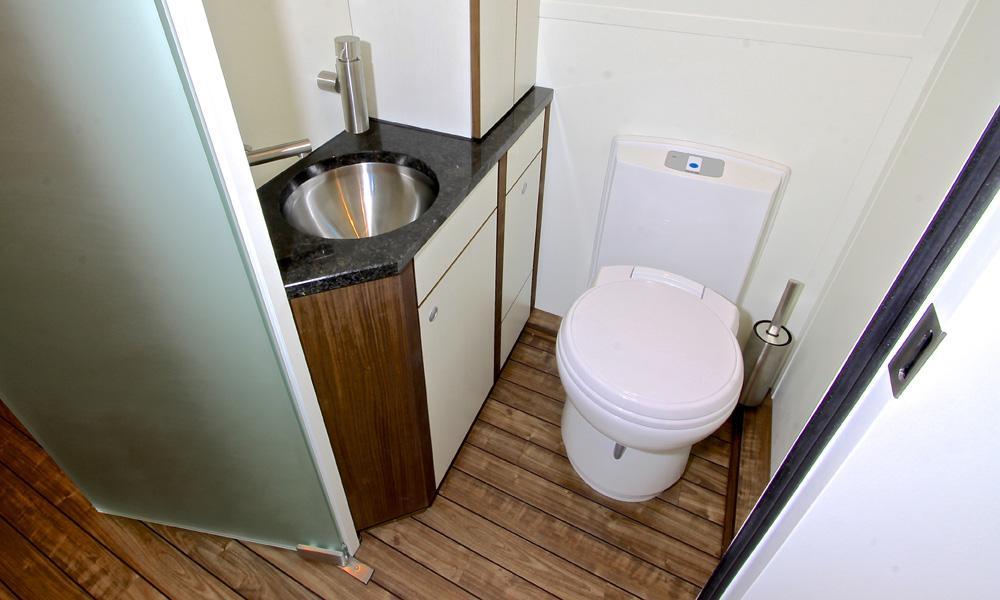

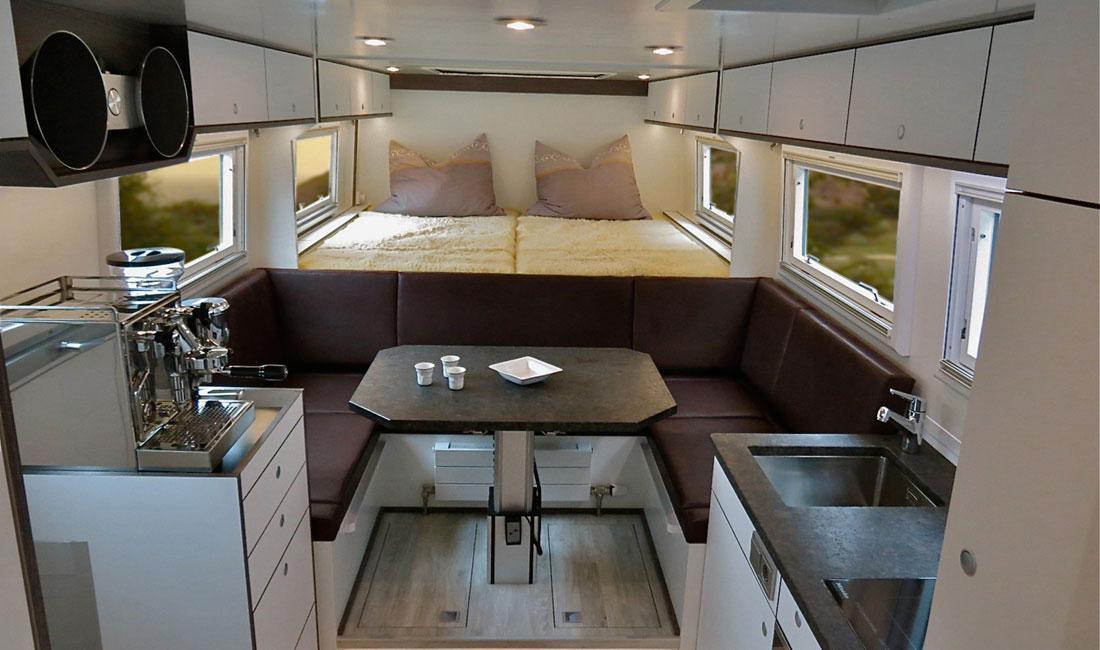

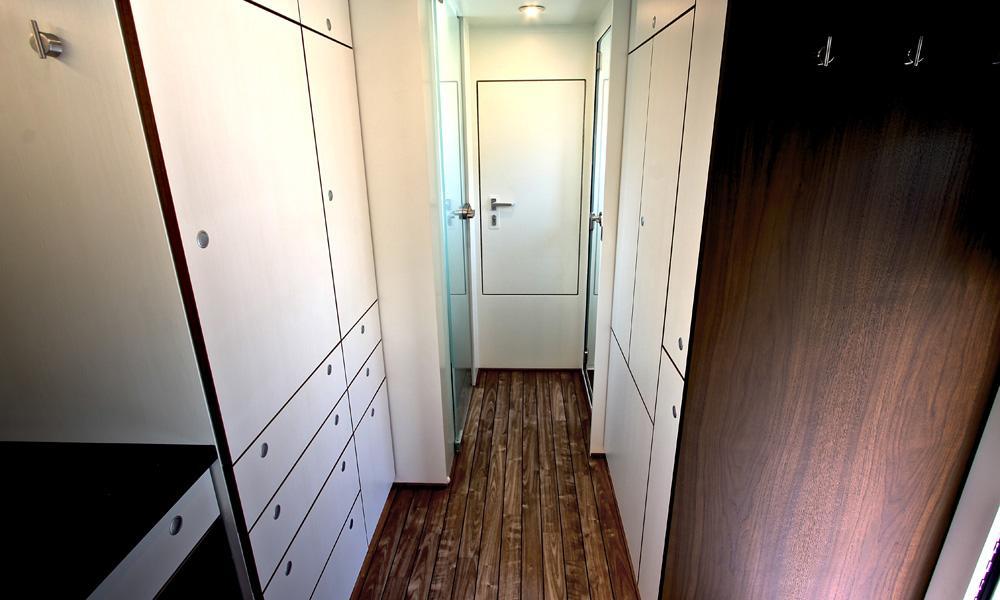

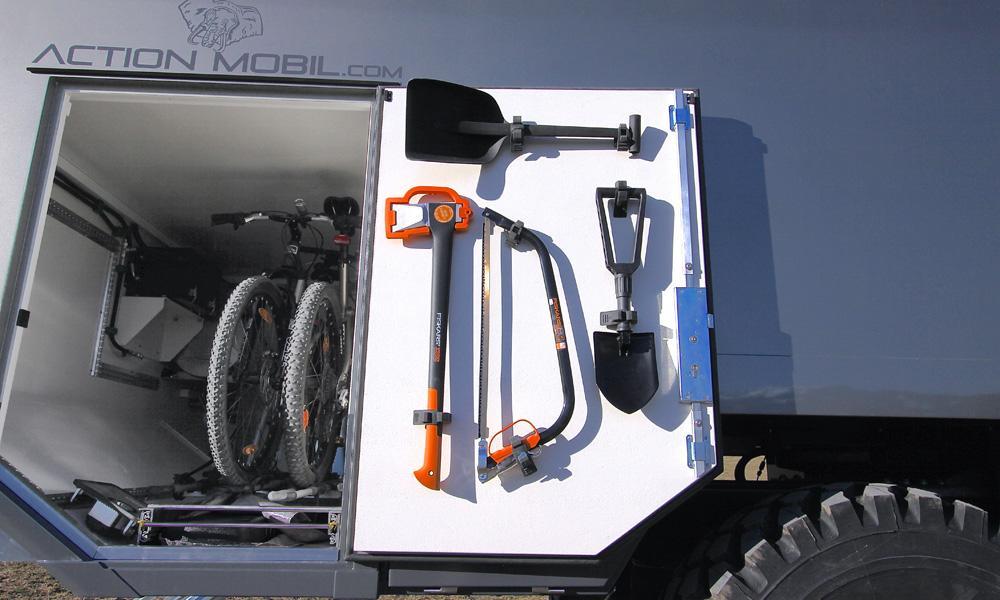

What is particularly remarkable is the sanitary area in the front part of the cabin. A sophisticated door system makes it possible to integrate the passage to the driver’s cab as a change room, if needed. Another feature that is highly popular is the U-shaped sofa in front of the permanent double bed. Below the bed there is a dust protected motorbike garage.
Technical specifications: Atacama 6300
Total length
8.800 mm
Body length
6.300 mm
Width
2.470 mm
Height (depends on demanded interior clearance)
3.850 mm
Weight ready-to-go
14 tons
Payload
5 tons
Performance
540 HP
Fuel
1 x 600 litres
Emission class with AdBlue shut off system (international suitability)
Fresh water: 700 litres (1 x 500 litres, 1 x 200 litres)
Waste water: 170 litres

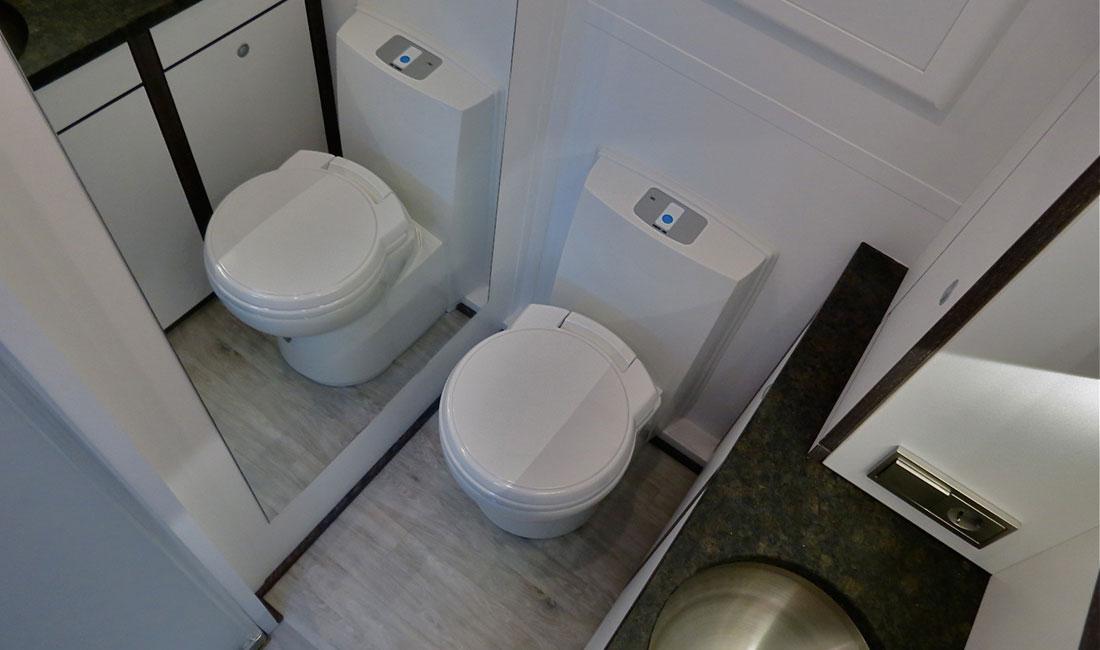

Toilet tank: Cassette with 17 litres plus 2 additional cassettes
Battery & Solar
Battery system & Solar system
Type of battery: AGM
Capacity: 4 x 270 Ah = 540Ah @ 24V
Solar power: 960 Watt
Inverter: 5.000 Watt cont.
Charger: 120A/230V + 25A/90-260V
Air condition
Air condition & heating system
Heating system: waterheating system with floor heating unit. ACTION MOBIL ARCTICKIT consisting of: heated fuel tanks, heated fuel hoses, heated batteries, heated engine block, additional fuel tank inside body
Air condition: Power 2400 W

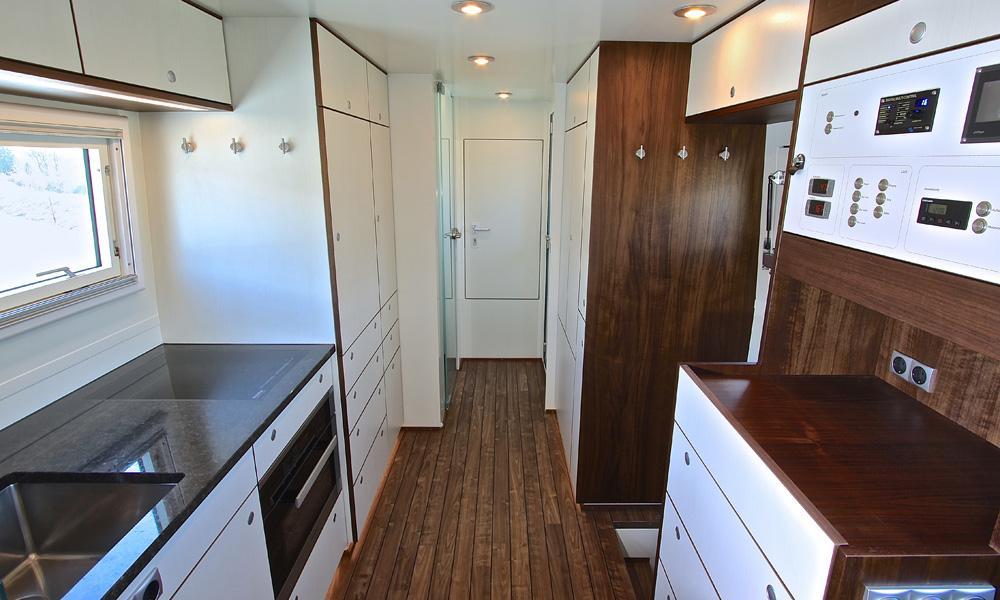

Kitchen
Kitchen equipment
Fridge: customized by ACTION MOBIL with extreme insulation 1 x 175 or 2 x 175 litres
Freezer: customized by ACTION MOBIL with extreme insulation 1 x 150 litres
Further equipment: washer-dryer MIELE
Induction cooker: MIELE 4 plates
Steamer: MIELE plus microwave and power heating system
More
Further equipment
Table: American nut

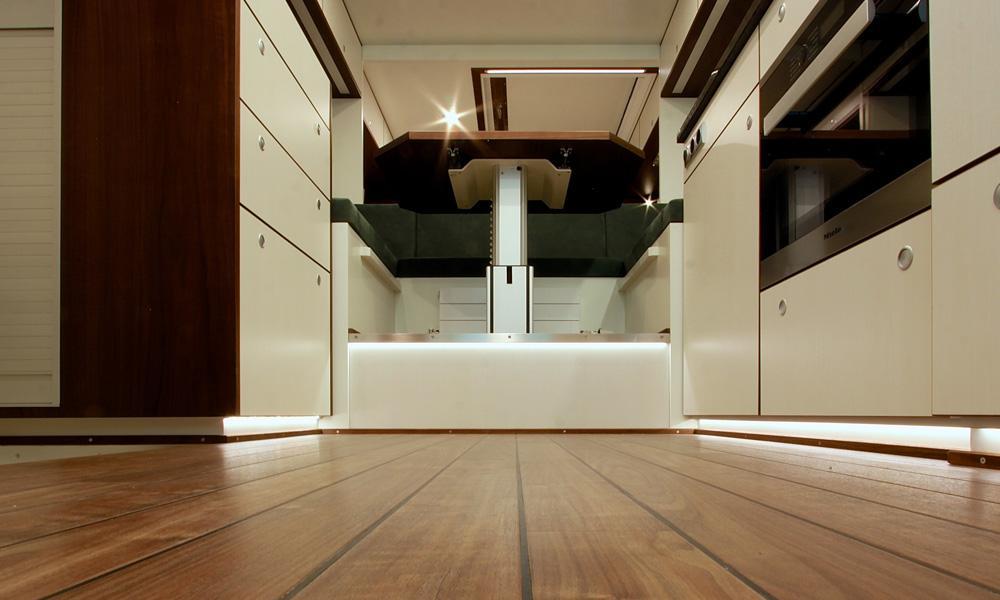

Floor: Nut

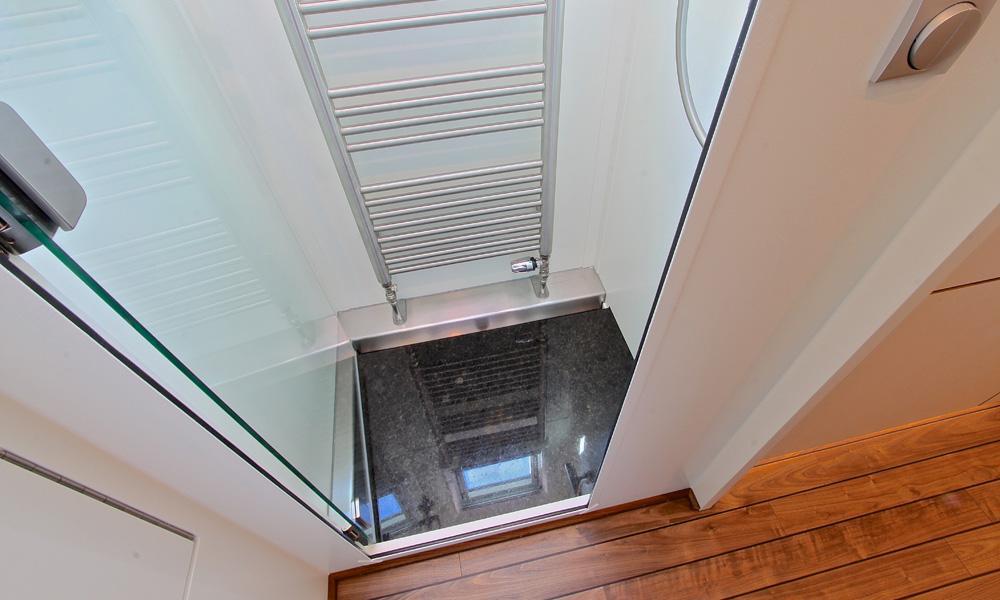

Shower floor, kitchen table: Granite
BOSE WAVE IV Soundsystem with Bluetooth
Tracking system: worldwide via satelite
CTIS
Windows customized by ACTION MOBIL
Lights: LED, dimmable colour change, indirect lieght in floor area

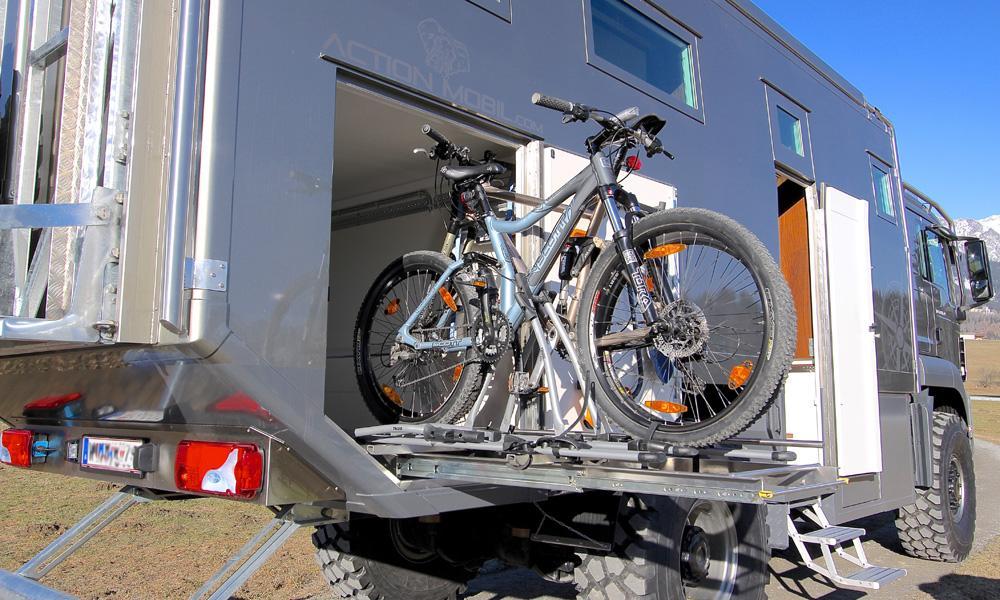

Hydraulic motor bike lift: Suitable for 1 motorbike, spare wheel and 4 sand sheets
VIDEO: Atacama 6300 Test drives in Namibia
The two videos give an overview of the ATACAMA 6300 test drive of the ACTION MOBIL founders and management through the wild northwest of Namibia.
VIDEO: Challenge Namibia 2017
Short cut of the Video "Challenge in Namibia 2017".
Another model of our Atacama 6300 off road camper series.
