GLOBECRUISER 7500 FAMILY

Globecruiser 7500 family - 2014 edition

Luxurious 3-Axle all wheel motorhome for the whole family

The perfect off-road motor home for families: Apart from the highly efficient 6x6 chassis the 3 axil off-road motor home Globecruiser 7500 Family main advantage is its sophisticated and spacious interior design, which offers sufficient living space for two adults and two kids. The Globcecruiser offers a comprehensive comfort-interior in a class of its own. From the MIELE electrical oven with integrated micro-wave and induction hob mounted on top of spacious fridge and freezer systems to the large tank for fresh and waste water – everything has been taken into account for the comfortable independent round-the-world trip off the beaten track.

Detailed Information & Layout: Globecruiser 7500 (pdf)

Technical specifications: Globecruiser 7500 Family

Total length 9.900 mm
Body length 7.500 mm
Width 2.500 mm
Height (depends on demanded interior clearance) 3.850 mm
Weight  ready-to-go 17.900 kg
Payload 4.100 kg
Performance 540 PS
Fuel 1 x 400 Liter
Emission class with AdBlue shut off system (international suitability) 5
Globecruiser Family - motorhome for the complete family

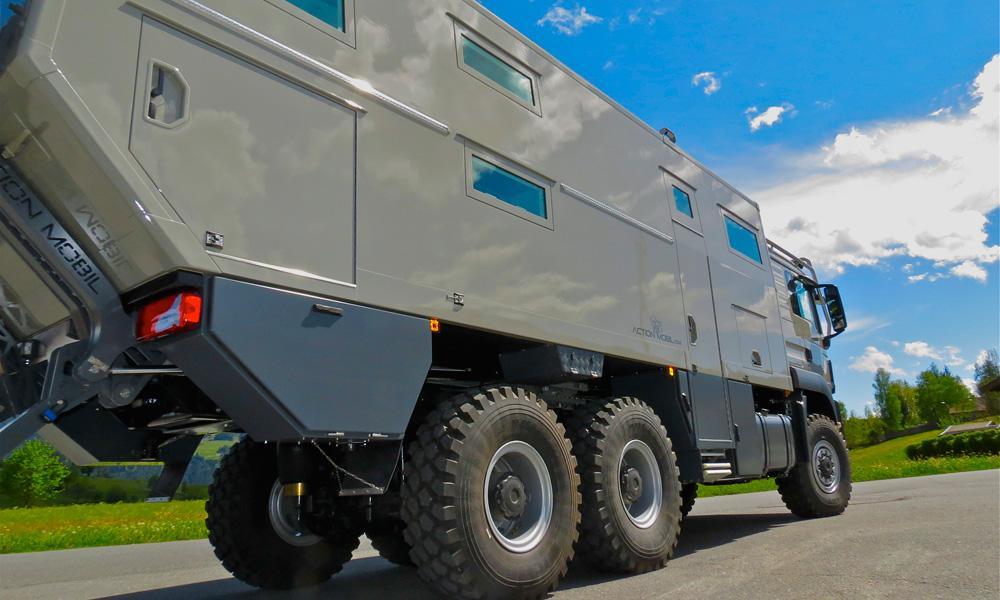

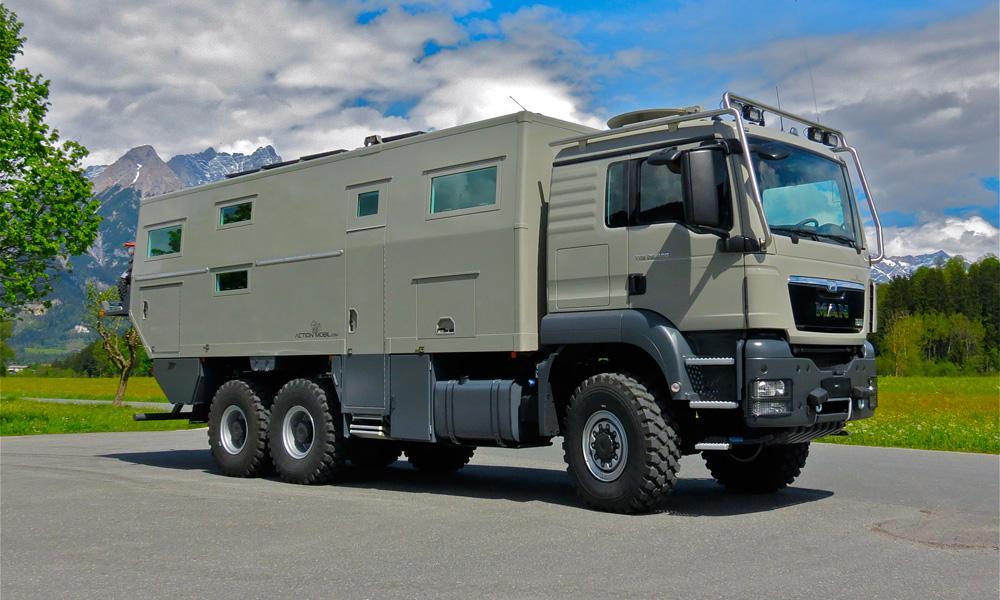

Powerful 6x6

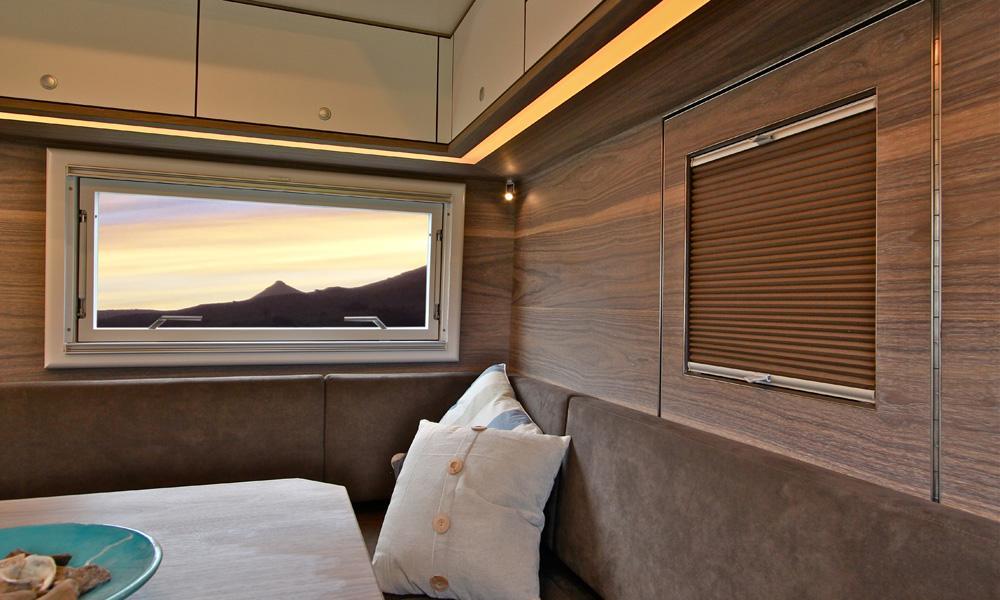

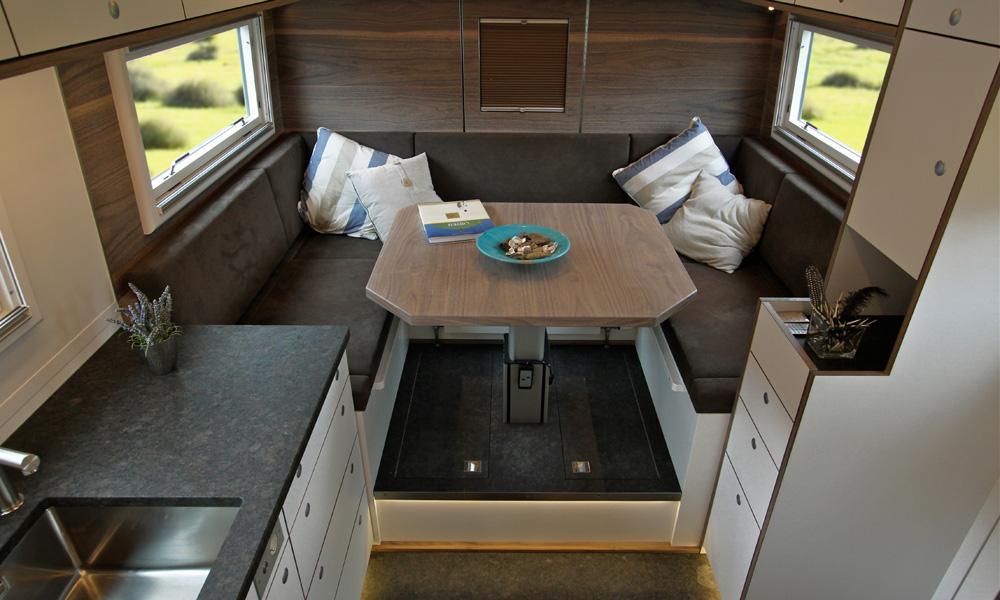

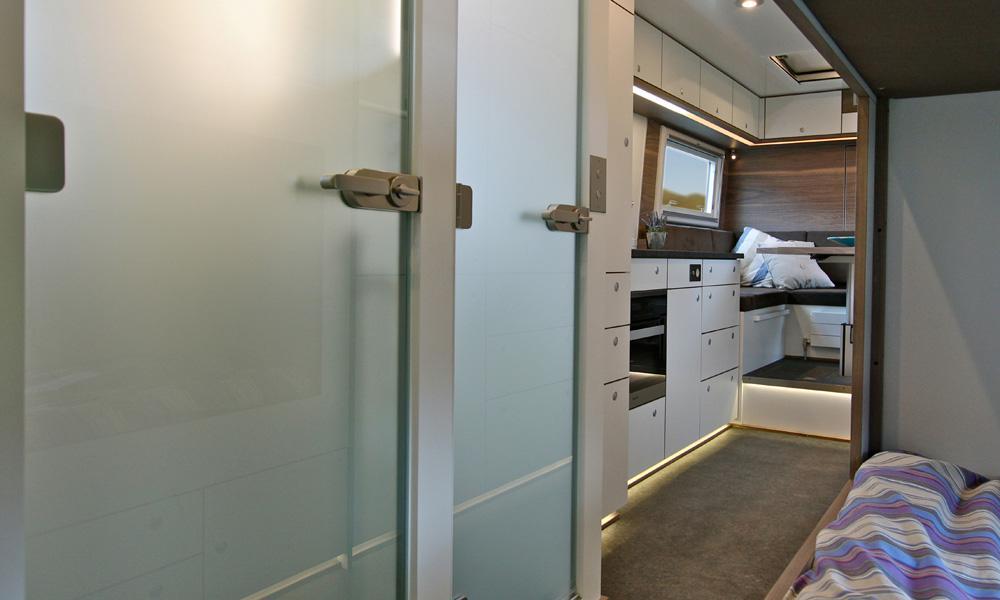

Spacious interior



Water supply

Water / Tanks

  • Fresh water:  1000 litres
  • Waste water: 190 litres
  • Toilet tank:  150 litres

Battery & Solar

Battery system & Solar system

  • Type of battery: LITHIUM-ION 24V 180Ah (Total 720Ah)
  • Solar power: 4 x 240 Watt
  • Inverter: 5.000 Watt cont.
  • Charger: 24V 40A - 115/230V

Air condition

Air condition & heating system

  • Heating system: waterheating system with floor heating unit.
  • Additional equipment: ACTION MOBIL ARCTICKIT consisting of: heated fuel tanks, heated fuel hoses, heated batteries, heated engine block, additional fuel tank inside body
  • Air condition: Power 2 x 2400 W

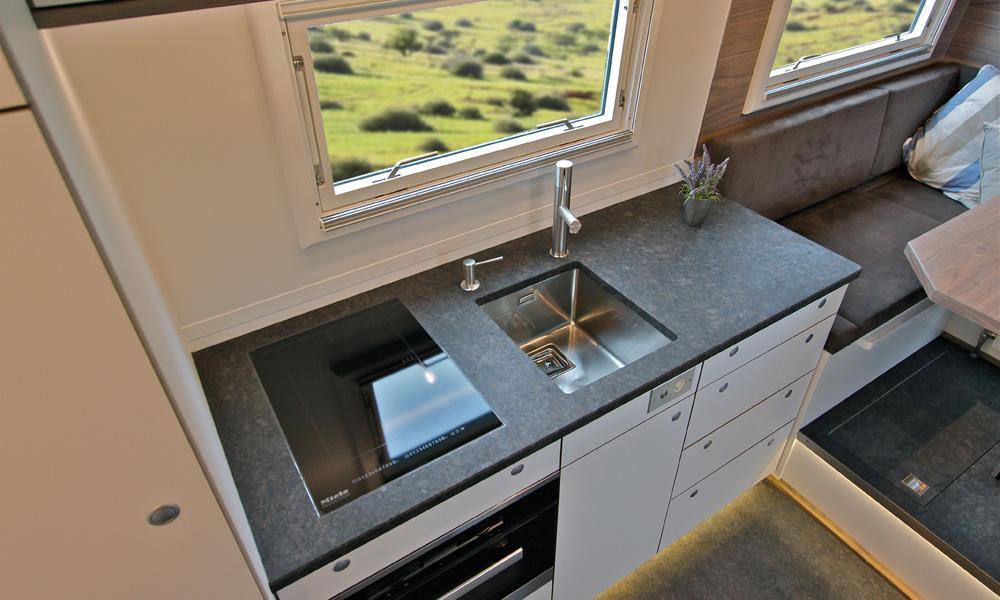

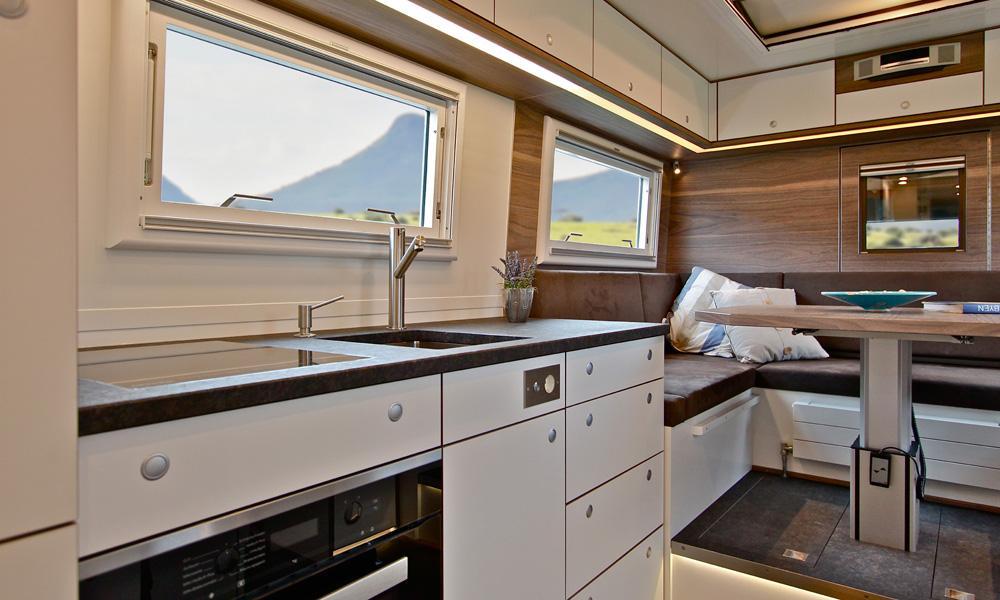

Kitchen

Kitchen equipment

  • Fridge: customized by ACTION MOBIL with extreme insulation 2 x 150 litres
  • Freezer: customized by ACTION MOBIL with extreme insulation 1 x 150 litres
  • Further equipment: washer-dryer MIELE
  • Induction cooker: MIELE 2 plates
  • Stove: Electronic stove MIELE plus microwave.

More

Further equipment

  • Table: 800mm x 600 mm, mounted on electronically lowerable table frame.
  • Floor: High-Quality synthetics
  • Shower floor: Granite
  • BOSE WAVE IV Soundsystem with SOUNDLINK
  • Tracking system: GSM module
  • Windows: customized by ACTION MOBIL
  • Lights: LED, dimmable colour change, indirect lieght in floor area

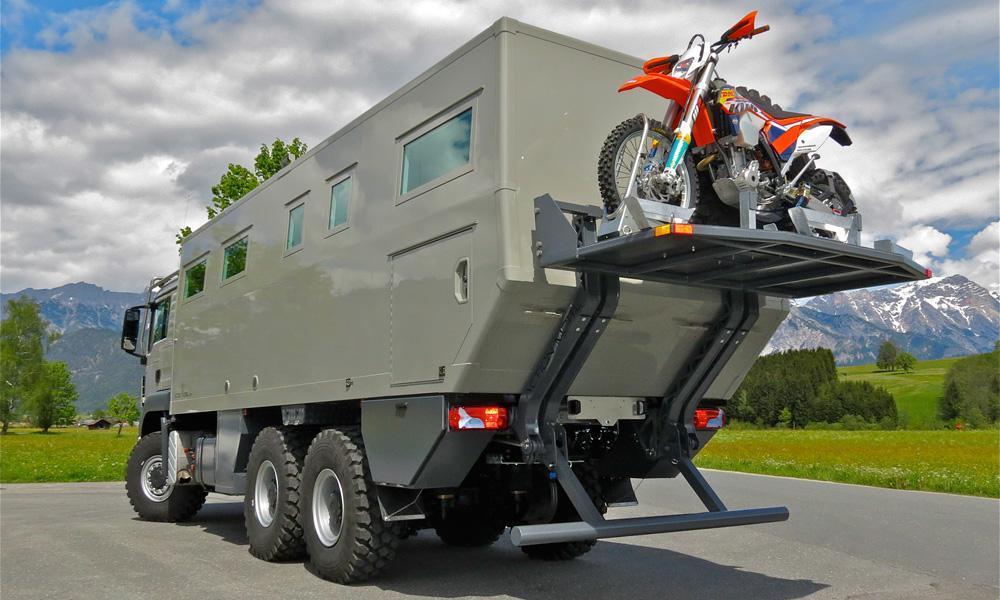

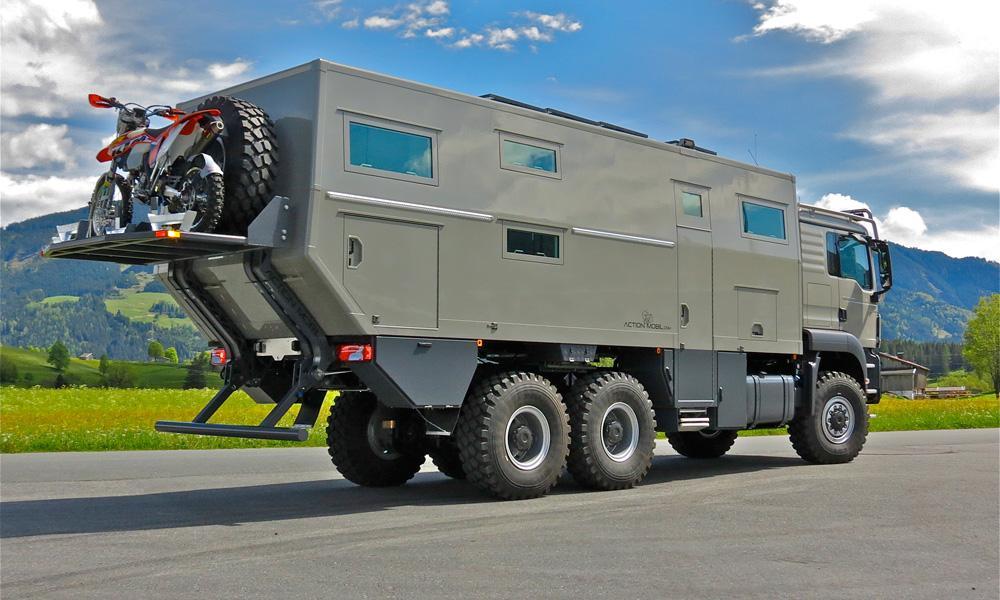

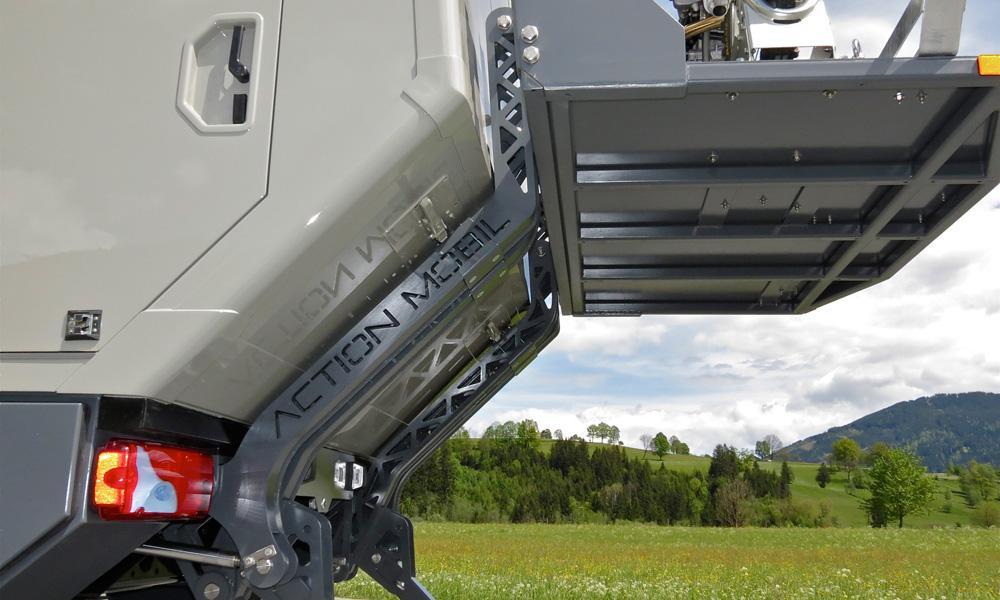

  • Hydraulic motor bike lift: Suitable for 1 motorbike, spare wheel and 4 sand sheets



Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background
Slide background



GLOBECRUISER-FAMILY-7550-Schnitt



GLOBECRUISER 7500 Family - Previous version

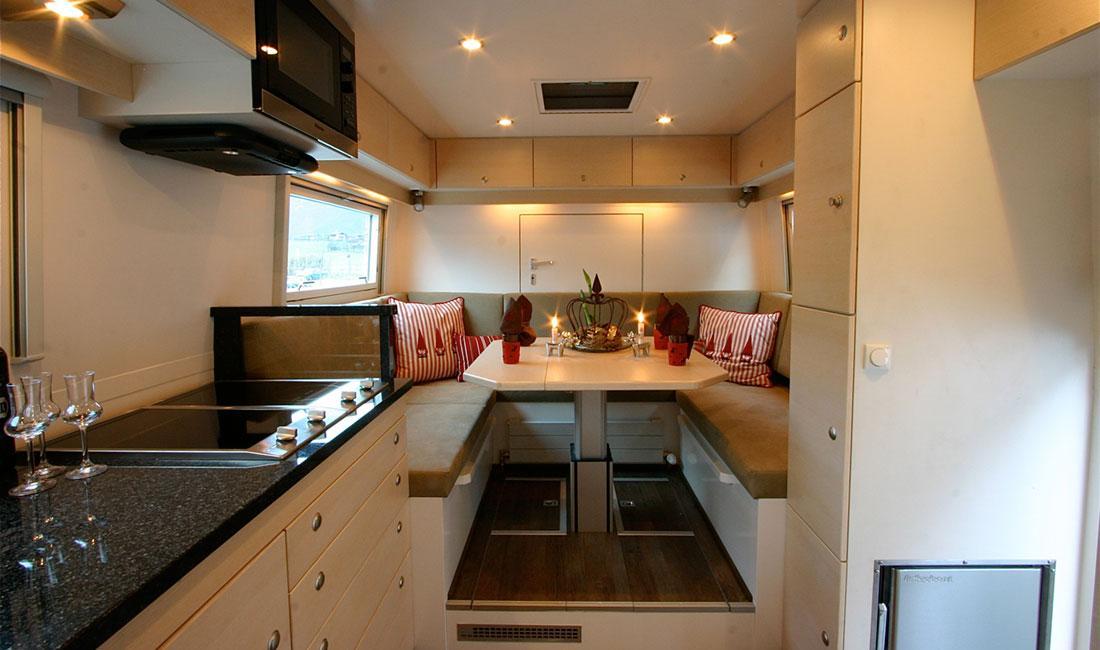

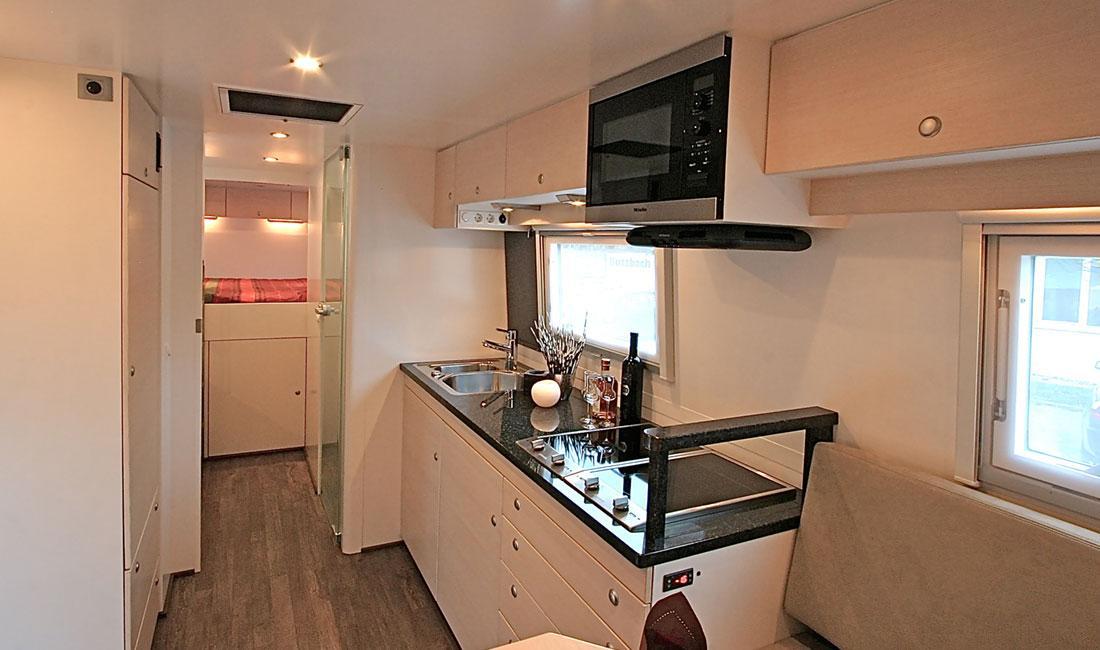

GLOBECRUISER 7100 - Familien-Expeditionsmobil mit 2 zusätzlichen Kinderbetten
